Round Quick Track

  • - 0%
Size

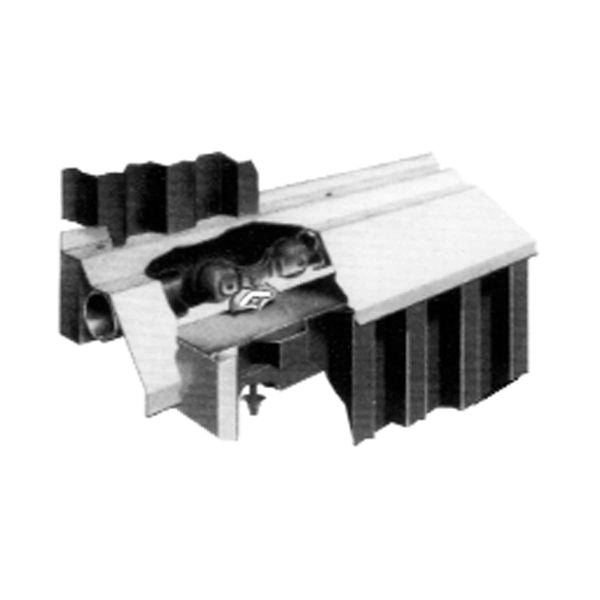

Quick Track combines the benefits of round track systems in an easy-to-install, one-piece system. Top mounted 14 gauge galvanized track with heavy 18 ga. cover with baked enamel finish provides maximum weather-resistance (matching end trims available) for doors up to 5" thick weighing up to 600 lb. Quick Track is only available for top-mount applications and is compatible with all CannonBall: HNP Round Track Trolleys.

Specifications:



 Model Round Quick Track
Length Various Lengths
Thickness 14 Gauge
Shape  Round
Color White
Features

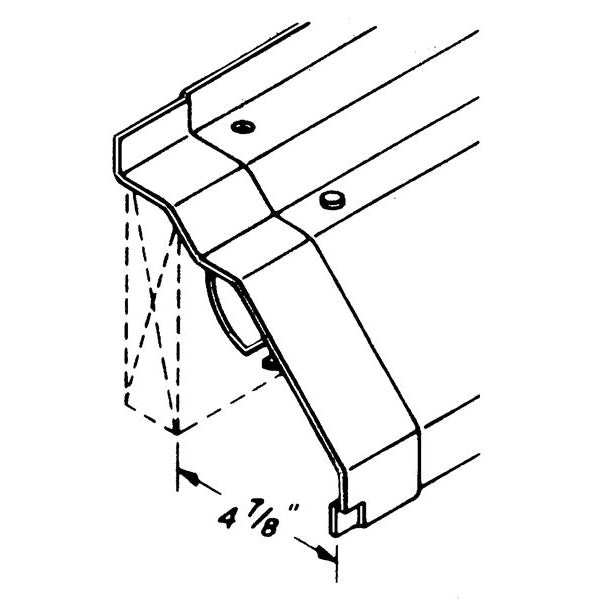

  • op-mounted 14 gauge galvanized track with heavy 18 gauge white cover designed to give weather protection for doors up to 5" in thickness.
  • An interlocking cover to fit snug and smooth.
  • All CannonBall trolley systems can be used.
  • End cap and trim complete a professional, trouble-free installation.
  • Quick-Track™ available in 8 to 20 ft. lengths

PDF Downloads

Round Track and Accessories (BH150-002-2308 to 2320)
